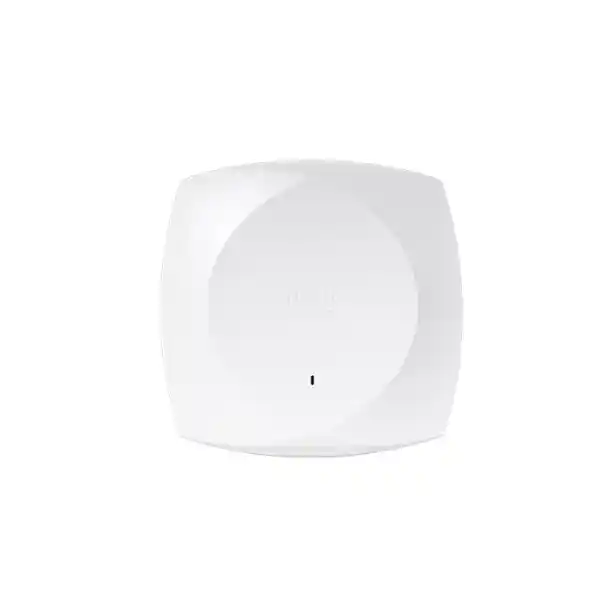

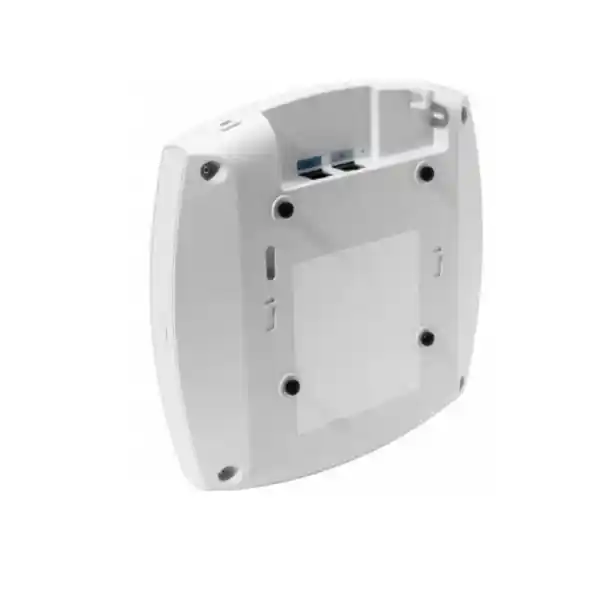

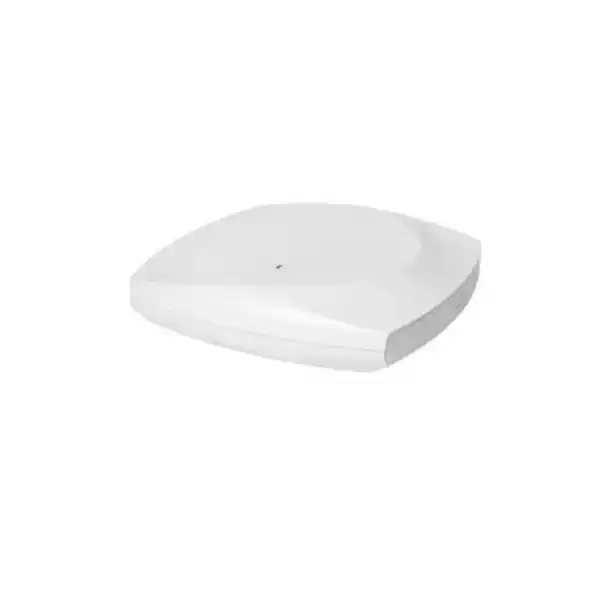

Cisco Meraki CW9176D1 Wi-Fi 7 Directional Access Point for Uganda

Build focused, enterprise-grade wireless coverage with the CW9176D1, a high-performance indoor access point featuring directional integrated antennas and multigigabit connectivity. Its Wi-Fi 7 capabilities support modern workplace devices, while management options depend on the selected Cisco operating mode and subscription. Directional coverage should be planned with an RF survey rather than treated as a universal replacement for omnidirectional access points.

Request a Uganda Quotation

Procurement Snapshot

Wireless Architecture and Coverage

The CW9176D1 supports Wi-Fi 7 technologies including multi-link operation, OFDMA, MU-MIMO, 4096-QAM and wide channels where supported by regulatory rules and compatible clients. Its directional antennas provide nominal peak gains of 7 dBi at 2.4 GHz and 8 dBi at both 5 GHz and 6 GHz. This focused pattern can suit defined coverage zones, but installers must consider wall attenuation, mounting height, device orientation and neighboring cell overlap. The 6 GHz radio may be disabled in markets where local authorization or software support is unavailable. The advertised aggregate physical-layer capabilities are not a promise of application throughput.

Business Benefits

1. Wireless capacity: Multiple spatial streams help serve capable devices in busy enterprise spaces.
2. Focused coverage: Directional antennas help engineers shape intended service areas.
3. Multigigabit backhaul: The 10 Gbps-capable uplink reduces the risk of a 1 Gbps wired bottleneck when appropriately powered.
4. Security: WPA3 and enterprise authentication options support managed access policies.
5. Centralized administration: Meraki cloud management can simplify multi-site visibility when correctly licensed and configured.
6. Operational flexibility: Select the appropriate management architecture and licensing before ordering.

Technical Specification Ledger

Power and Switching Design

Power is a critical procurement decision. With 802.3bt Class 5 power the unit supports 4×4 operation across the listed client-serving bands, a 10 Gbps link and USB availability, with maximum PoE draw stated as 39 W. Under 802.3at, 2.4 GHz operation is reduced to 2×2, uplink operation is limited to 2.5 Gbps and USB is unavailable. Standard 802.3af is for staging with client-serving radios disabled. Verify the switch’s per-port power, total PoE budget, LLDP negotiation and cabling before installation. Consider the Cisco CW-INJ-8 injector where appropriate.

Deployment Planning Worksheet

Record the floor plan, construction materials, expected concurrent users, client radio generations, application traffic, SSID count, security requirements and desired roaming behavior. Next, survey channel availability and assess local authorization for 6 GHz. Determine directional antenna orientation and the number of access points required. Confirm switch port speed, PoE class, structured cabling, management platform, subscription duration and installation accessories. For high-availability projects, include redundant upstream switching and resilient internet connectivity in the wider network design; the access point itself does not replace those systems.

Enterprise Deployment Examples

Corporate offices and multi-site businesses

Use directional coverage in planned open offices, training rooms and collaboration areas. Establish common access policies and monitoring across locations while validating each site’s RF environment.

Banking and regulated organizations

Segment employee, guest and operational devices. Align authentication, logging, configuration change control and retention with internal policy. Confirm subscription and platform integration during design.

Universities and education campuses

Survey lecture halls, laboratories and teaching spaces for simultaneous client load. Design overlapping coverage and backhaul capacity to avoid congested access areas.

Government facilities

Document supply-chain requirements, equipment approvals, management architecture and security controls. Confirm procurement eligibility and local radio regulations before purchase.

Software, Security and Continuity

The CW9176D1 belongs to Cisco’s Wireless 9176 family. Its supported management approaches require correct software, subscriptions and onboarding procedures. For controller-managed operation, verify compatible Catalyst wireless controllers and firmware. For Meraki-managed operation, validate dashboard organization, license assignment, network settings, VLAN mapping and identity integration. WPA3 can protect compatible wireless clients, but effective security also depends on authentication servers, endpoint posture, network segmentation and operational processes. Maintain configuration records and documented replacement procedures to reduce recovery time after hardware failure.

Common Procurement Questions

Is a subscription required?

Yes. Cisco specifies a Cisco Networking Subscription for wireless, with Essentials and Advantage options. Ask for an itemized license term and entitlement confirmation.

Can the access point operate on ordinary PoE?

802.3af is intended for configuration staging only, with radios off. Full operation calls for suitable 802.3bt power; 802.3at has reduced capabilities.

Does it support 6 GHz in Uganda?

Hardware support does not guarantee local regulatory permission. Confirm current Uganda rules, regional SKU and Cisco software support before promising 6 GHz operation.

Is the antenna omnidirectional?

No. CW9176D1 is the integrated directional antenna variant. Choose placement based on a professional coverage design.

Will every client receive Wi-Fi 7 speeds?

No. Performance depends on client capability, channel availability, interference, traffic load and wired uplink conditions. Published physical-layer rates are not real-world guaranteed throughput.

Can it connect to a 1 Gbps switch?

The Ethernet port supports 1 Gbps negotiation, but this may constrain total uplink throughput. Also verify sufficient PoE power independently of negotiated data speed.

Is the unit intended for outdoor installation?

The CW9176D1 is described as an indoor access point. Outdoor or exposed applications require a separately suitable product and environmental design.

How should warranty be handled?

Request written confirmation of the supplied hardware warranty, regional entitlement, serial number traceability, replacement procedures and any subscription-related support rights.

What should be included in a quote?

Ask for the exact CW9176D1 variant, quantities, licenses, power accessories, mounting components, tax treatment, freight, delivery lead time and support scope.

Uganda Delivery and Technical Coordination

FourTeck can discuss quotation requirements for Kampala, Entebbe, Jinja, Mbarara and Gulu. Delivery routes, shipment timing, local stock, duties and installation arrangements must be confirmed individually. Buyers coordinating regional rollouts may also review Kenya, Africa, UAE and Kuwait channels alongside Uganda.

Related Equipment and Project Services

Ask about compatible multigigabit PoE switches, Cisco wireless subscriptions, suitable injectors, structured cabling, mounting hardware, identity integration and wireless site surveys. FourTeck can review a proposed bill of materials, discuss staging and firmware requirements, and define any post-sales assistance in the written quotation.
