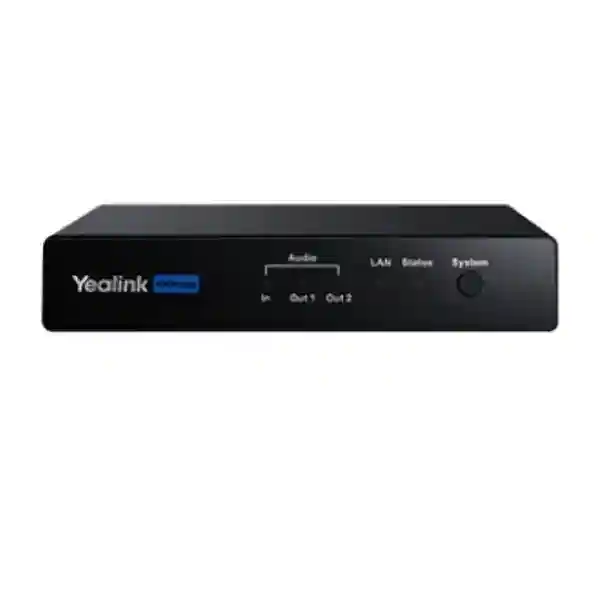

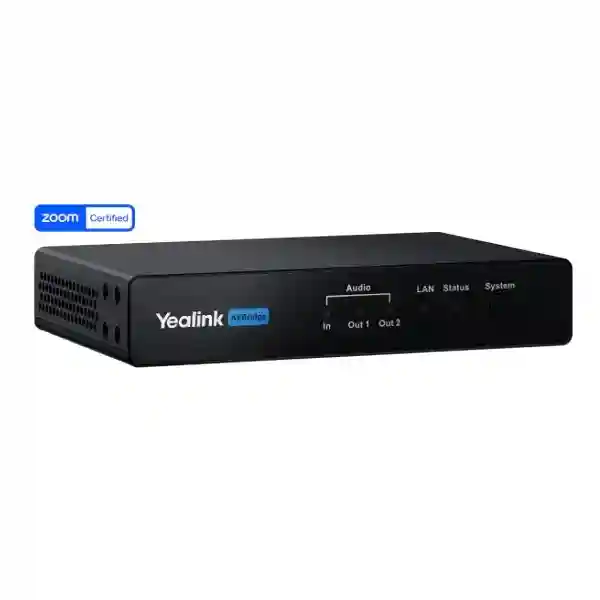

Yealink AVBridge Audio Video Extender for Professional Meeting Rooms

Yealink AVBridge is a compact professional audio interface and A/V signal extender for organizations that need to connect room microphones, speakers, cameras, conferencing hosts and external audio equipment through a more flexible architecture. Rather than forcing every device to sit beside the room computer, AVBridge provides a structured bridge between network audio, analog audio and USB conferencing workflows. It combines 4 × 4 Dante channels, AES67 interoperability, Phoenix analog input and output, USB conversion and extension, a matrix mixer and parametric equalization in a compact PoE-powered enclosure. For Uganda meeting-room projects, this makes the product particularly useful where integrators must balance room aesthetics, cable routes, device placement, serviceability and predictable audio performance.

The unit is designed for professional collaboration spaces and can be paired with Yealink CM20 or CM50 ceiling microphone systems and compatible Yealink or third-party Dante and analog speaker paths. It can also help create BYOM-oriented room designs where audio or camera signals must reach a host without placing all equipment at the table. Procurement teams should treat AVBridge as an integration component rather than a standalone conferencing endpoint: the final bill of materials depends on the microphone topology, loudspeaker choice, camera, host platform, network switch, cabling, room acoustics and the required conferencing workflow.

Request AVBridge Quote in Uganda

Instant Specifications & Procurement Fact Rail

AVBridge is not a generic USB dongle. Its value comes from combining network audio routing, analog connectivity and conferencing-host extension in one small device. Buyers should therefore confirm the entire room topology before ordering. A project may require ceiling microphones, network or analog speakers, an appropriate PoE switching environment, camera hardware, USB connectivity and room-control components. FourTeck can validate these dependencies before a purchase order is issued.

Operational Product Architecture

The architecture centers on three practical signal domains. The first is Dante network audio, where AVBridge exposes four transmit and four receive channels at 48 kHz and 24-bit depth, with a specified Dante frequency response of 100 Hz to 20 kHz, dynamic range of 97 dB and THD+N of no more than 0.1%. This enables routable low-latency audio to move across an appropriate Ethernet infrastructure rather than relying exclusively on long point-to-point analog runs. AES67 support adds an important interoperability layer for professional environments that already use standards-based audio-over-IP equipment.

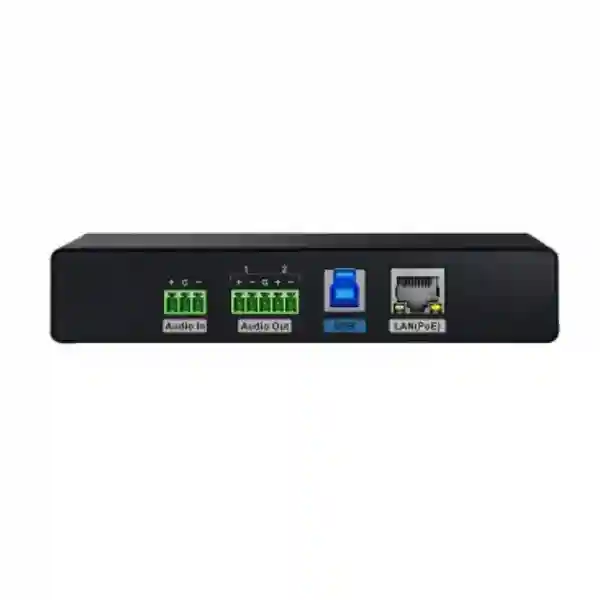

The second domain is analog audio. AVBridge provides one three-pin Phoenix analog input and one five-pin Phoenix analog output. The analog path supports a 100 Hz to 20 kHz frequency response, input dynamic range of 92 dB and output dynamic range of 93 dB. Input gain can be adjusted from 0 to 11 dB, while output limiting is specified from -10 dBV to +4 dBu. These interfaces matter when a room includes legacy or specialist equipment that does not live natively on the Dante network. Instead of replacing every component simply to standardize transport, an integrator can use the analog connection as part of a mixed architecture.

The third domain is USB. AVBridge supports conversion of audio and video data to USB for conferencing integration and is designed to extend camera or audio signals toward the host. USB audio supports 48 kHz or 16 kHz sampling and 16-bit or 24-bit depth. In practical room design, this gives installers freedom to separate the conferencing host from selected room peripherals while retaining a coherent user experience.

Built-in matrix mixing and parametric equalization provide foundational signal-routing and room-tuning capability. These functions are especially useful when a room needs deliberate routing between multiple inputs and outputs rather than a fixed one-to-one path. Yealink Room Designer support and one-touch deployment functionality are intended to simplify commissioning. Firmware compatibility should still be checked across connected Yealink Pro AV devices before site deployment, because coordinated software versions can be required for configuration and operation.

From a procurement perspective, the operational pain point AVBridge addresses is fragmentation. A modern room can contain network microphones, analog loudspeakers, USB hosts, cameras and separate processing paths. Without a deliberate bridge, installers may add multiple adapters and converters, increasing failure points and complicating troubleshooting. AVBridge consolidates several of those functions into a single managed component while keeping the design compact.

Enterprise Business Outcomes & Value Analysis

Key Hardware & Software Highlights

AVBridge packages its core functions in a 150 × 100 × 28 mm PC+ABS enclosure weighing approximately 315 g. This small footprint is valuable behind displays, in credenzas, under tables or in other serviceable AV locations where rack-sized processing would be excessive. The RJ45 network connection supports Cat5e or higher cabling, with shielded cable recommended by Yealink. Power is delivered through Ethernet, helping simplify placement.

The four-by-four Dante channel architecture is the centerpiece for network audio. AES67 support helps the device participate in professional standards-based environments. The Phoenix analog connectors preserve a practical path to non-network audio equipment. USB conversion and extension help integrate conferencing hosts and peripherals. Matrix mixing lets an installer determine which inputs feed which outputs, while PEQ provides baseline frequency shaping for room tuning. Room Designer compatibility brings the device into Yealink’s room-design and commissioning workflow.

Technical Specifications Ledger

Specifications above are based on Yealink’s published AVBridge information. Final compatibility should be checked against the current firmware and the exact devices selected for the project. Where a tender requires formal compliance evidence, request the current manufacturer documentation with the commercial quotation.

Configuration & Sizing Worksheet

Step 1: Define the room and workload

Record room dimensions, ceiling height, table layout, seating count, typical meeting size, conferencing platform, camera positions and presentation requirements. Identify whether the room is a conventional fixed conferencing room, a flexible BYOM space or a mixed-use training and collaboration environment. This determines whether AVBridge is acting mainly as a network-audio bridge, an analog integration point, an A/V extender or a combination of these roles.

Step 2: Map microphone and speaker coverage

Choose the microphone strategy based on coverage rather than device count alone. AVBridge is documented for one CM50 or up to four CM20 microphones in supported Yealink scenarios. Speaker selection can include suitable Yealink products or compatible Dante/analog speaker paths. The room’s reverberation, ceiling treatment and seating geometry should be considered before the bill of materials is frozen.

Step 3: Validate network and power

Confirm that the selected switch provides the required PoE capacity and appropriate Gigabit network behavior for the complete Pro AV system. Yealink firmware guidance for its ProAudio ecosystem calls for Gigabit PoE+ switching with Energy Efficient Ethernet disabled in relevant deployments. Check this requirement against the final topology rather than assuming an existing office access switch is automatically suitable.

Step 4: Check cabling and physical clearance

Use Cat5e or better structured cabling and consider shielded cable where appropriate. Plan accessible mounting so technicians can inspect connectors and service the unit. Although the chassis is only 28 mm high, cable bend radius and Phoenix connector access require more real installation clearance than the bare product dimensions suggest.

Step 5: Confirm software and firmware alignment

Document firmware versions for AVBridge and connected Yealink Pro AV devices before commissioning. Keep Room Designer versions aligned with manufacturer guidance. Version mismatch can prevent configuration even when discovery or firmware upgrade remains possible.

Step 6: Prepare the quotation checklist

Provide FourTeck with the room count, room dimensions, desired microphone type and quantity, speaker type, conferencing platform, camera model, network switch details, cable distances, required delivery location and any installation or staging requirement. This information allows the quotation to distinguish mandatory equipment from optional accessories and helps reduce change orders.

Deployment Scenarios & Industry Use Cases

Large Enterprise and Multi-Site Networks

Enterprises standardizing meeting spaces across several offices can use AVBridge as a repeatable integration component for rooms that need Dante, analog and USB connectivity without moving to a much larger processor. A documented reference design can specify microphone coverage, speaker routing, PoE switching, firmware baselines and cable labeling. Standardization is especially valuable for support teams because technicians encounter a familiar signal path across locations.

Financial and Banking Institutions

Banks and financial organizations often need meeting rooms that are professional, discreet and supportable. AVBridge can sit within a controlled AV architecture where ceiling microphones and speakers reduce tabletop clutter. Procurement should still include change control, firmware governance and network segmentation practices appropriate to the institution. The product itself does not replace broader information-security controls.

Education and Campus Networks

Universities, training centers and executive classrooms may use AVBridge where microphones, speakers and conferencing hosts must be distributed around a room. Network audio can reduce the need for long analog cable runs, while analog I/O preserves a path to selected legacy equipment. Campus teams should document switch configuration and maintain consistent firmware across rooms to reduce troubleshooting effort.

Government and Public-Sector Procurement

Public-sector projects frequently require clear bills of materials, manufacturer references, warranty documentation and delivery schedules. FourTeck can structure the quotation around the specified AVBridge part, compatible room components and optional staging services. Any requirement for special compliance certification, approved-country sourcing or tender-specific documentation should be stated before quotation acceptance.

Technical Deep Dive: Signal Processing & Audio Engine

AVBridge is best understood as a compact signal-routing and conversion appliance. The Dante side provides four receive and four transmit channels at 48 kHz and 24-bit depth. This channel count suits focused meeting-room designs rather than very large divisible spaces with dozens of independent audio zones. The built-in matrix mixer allows integrators to decide how sources are distributed, while PEQ provides fundamental frequency shaping. This can help tune a practical conferencing system without adding a separate processor solely for basic routing and equalization.

The analog input and output make the architecture more flexible. Existing amplifiers, powered speakers, external mixers or other compatible devices can remain part of a design where appropriate. However, analog level matching must be engineered correctly. The specified input gain and output limiting ranges should be considered alongside the connected equipment’s nominal levels. A commissioning engineer should verify gain structure end to end rather than treating every Phoenix connection as electrically interchangeable.

Technical Deep Dive: Software, Firmware & Operational Control

Yealink Room Designer is central to the intended deployment workflow. It helps discover and configure supported room devices and is part of the broader Yealink Pro AV commissioning approach. Firmware release notes show that AVBridge participates in a coordinated ecosystem with products such as CM20, CM50, CS10/CS10-D, AVHub and selected cameras. This means firmware management should be planned at system level. Before upgrading a live room, administrators should record current versions, review compatibility guidance, schedule a maintenance window and keep the room’s configuration documentation current.

A standardized firmware baseline is particularly important for multi-room rollouts. If one room is commissioned with a newer Room Designer and another retains older device firmware, support behavior can become inconsistent. Treat the room as a managed AV system rather than a collection of independent peripherals.

Technical Deep Dive: Availability, Redundancy & Recovery Planning

AVBridge itself is a compact single appliance, so system resilience depends on design choices around it. The PoE switch, network path, host computer, camera, microphones and speakers are all dependencies. For critical boardrooms, organizations may keep a preconfigured spare unit or maintain an approved replacement process. Switch power should be protected by the site’s UPS strategy where meeting continuity matters. Configuration records, firmware packages and cable maps should be retained so a replacement can be commissioned quickly.

Disaster recovery for a meeting room is less about complex clustering and more about eliminating undocumented dependencies. Label cables, record switch ports, save configuration details, note microphone and speaker assignments and keep the bill of materials with serial-number records. These operational practices can reduce restoration time significantly after a hardware replacement or room renovation.

Pre-Purchase Buyer Gap Checklist

Is AVBridge a complete conferencing system? No. It is an integration and extension component. A complete room can still require a host, camera, microphones, speakers, network switching, display and control interface.

Are there hidden subscription requirements? The published AVBridge feature set describes the hardware and Room Designer workflow, but project licensing can also depend on the conferencing platform and other room products. Confirm the complete solution before ordering rather than assuming every software service is bundled with AVBridge.

Will it work with third-party audio equipment? Yealink documents support for third-party Dante or analog speaker scenarios. Compatibility still depends on protocol support, levels, channel routing and the complete design. Validate exact models during engineering.

How much installation space is needed? The enclosure is 150 × 100 × 28 mm, but installers need additional clearance for Ethernet, USB and Phoenix wiring and for future service access.

What network switch should be used? Do not select solely on port count. Validate Gigabit capability, PoE budget and the settings recommended for the Yealink ProAudio ecosystem. Firmware guidance has specifically called for EEE to be disabled in relevant ProAudio deployments.

What is the real power requirement? AVBridge is specified at 13 W full load and 8 W no load. Size the PoE budget for the entire room, not only this unit.

Is the warranty fixed? Regional commercial warranty terms can depend on supply channel and quotation. FourTeck will confirm applicable warranty terms on the Uganda quotation rather than presenting an unverified duration.

What about product lifecycle? For projects with many rooms or phased deployment, request current lifecycle and lead-time information when ordering. Standardize part numbers and maintain an approved alternative strategy for long-running rollouts.

Uganda Procurement & Delivery Logistics

FourTeck supplies enterprise communication and meeting-room equipment for Uganda projects on a quotation basis. For Yealink AVBridge, the procurement process should begin with the required quantity and a brief description of the room design. Where the product is part of a new conferencing room, include the microphone, speaker, camera and host requirements so the bill of materials can be checked before commercial approval. Current stock, inbound availability, delivery timing, warranty terms and project pricing are confirmed at quotation stage.

For multi-room deployments, buyers can request consolidated staging and labeling requirements so units can be associated with specific rooms or sites before dispatch. Technical pre-checks can include model matching, firmware planning, accessory verification and confirmation that the intended switch and cabling architecture are suitable. Delivery schedules depend on quantity, stock position, import requirements and destination, so tender projects should allow enough time for validation rather than treating AVBridge as an off-the-shelf consumer accessory.

Uganda Coverage Matrix

Organizations in Kampala can request AVBridge supply for corporate headquarters, financial institutions, hotels, education facilities, government offices and collaboration-room upgrades. Entebbe projects can be supported for hospitality, aviation-related offices and distributed corporate sites. Jinja buyers can source equipment for industrial, education and regional-office deployments. Mbarara projects can be quoted for business, healthcare, education and public-sector meeting spaces, while Gulu organizations can request project-based supply for regional offices and institutional collaboration rooms. Delivery and implementation arrangements are confirmed against the exact destination and project scope.

Cross-Border & Regional Supply

Projects spanning multiple countries can coordinate sourcing through FourTeck’s regional web properties. Visit FourTeck Uganda for Uganda requirements, FourTeck Kenya for Kenya, FourTeck Africa for broader African project coordination, FourTeck UAE for United Arab Emirates requirements and FourTeck Kuwait for Kuwait projects. Cross-border lead times, commercial terms and logistics differ by destination and should be confirmed per quotation.

Related Yealink Room Components

AVBridge is commonly evaluated alongside ceiling microphones, network speakers, cameras and larger AV processing products. Consider the Yealink CM20 ceiling microphone for distributed pickup, CM50 Dante ceiling microphone for compatible professional audio designs, CS10 or CS10-D ceiling loudspeaker options, AVHub for larger rooms that need more extensive audio/video processing, and suitable Yealink conferencing cameras. For room-level planning, review meeting-room design and quotation support and request a complete bill of materials rather than purchasing isolated components without compatibility validation.

FourTeck Technical Service Capabilities

FourTeck can support AVBridge procurement with engineering validation before purchase. This includes reviewing the proposed microphone count, speaker type, camera and host relationships, network switching, cable categories and room quantities. Bill-of-materials verification helps identify missing PoE capacity, incorrect accessory assumptions or mismatched room components before equipment is dispatched.

For suitable projects, staging requirements can be defined around firmware baselines, device labeling and room allocation. Pre-shipment checks can reduce on-site uncertainty, especially for deployments involving multiple branches. Post-sales support can assist with product-level troubleshooting and coordination of warranty processes according to the commercial terms of the order. The scope of configuration, installation and on-site services should be stated in the quotation so responsibilities are clear to both the customer and implementation team.

Extended Technical FAQ

1. What is the main purpose of Yealink AVBridge?

AVBridge is a compact audio box and A/V signal extender intended for professional meeting spaces. It bridges network audio, analog audio and USB-oriented conferencing workflows. Its 4 × 4 Dante capability supports low-latency routed audio, while Phoenix analog I/O provides connectivity for compatible non-network equipment. USB conversion and extension can carry room audio or camera-related signals toward the conferencing host. The device also includes matrix mixing and PEQ for foundational routing and tuning. It should be specified as part of a complete room architecture rather than treated as a standalone video conferencing endpoint.

2. Does AVBridge support Dante and AES67?

Yes. Yealink specifies 4 input and 4 output Dante channels and support for both Dante and AES67 protocols. The Dante audio specification is 48 kHz at 24-bit depth, with a frequency response of 100 Hz to 20 kHz and 97 dB dynamic range. This makes AVBridge useful in rooms where audio needs to travel over a professional networked-audio architecture. The rest of the network must still be designed correctly, including appropriate switching, PoE capacity and configuration. Compatibility with a particular third-party device should be validated as part of the room design.

3. Which Yealink ceiling microphones can be used?

Yealink positions AVBridge for use with its CM20 and CM50 ceiling microphone families. Published product information describes support for one CM50 or up to four CM20 microphones in supported room scenarios. The correct microphone choice depends on room dimensions, seating geometry, ceiling height, acoustic conditions and the desired pickup pattern. Buyers should not select microphone quantity from maximum device counts alone. For a new room, provide drawings or dimensions so the microphone layout and speaker strategy can be checked before the purchase order is finalized.

4. Can AVBridge connect to analog audio equipment?

Yes. It provides one three-pin Phoenix analog input and one five-pin Phoenix analog output. The analog path is specified for a 100 Hz to 20 kHz frequency response, with 92 dB input and 93 dB output dynamic range. Input gain is adjustable from 0 to 11 dB, and output limiting is specified from -10 dBV to +4 dBu. This provides useful flexibility for compatible amplifiers, speakers, mixers or other equipment. Correct gain staging remains important, so an installer should check the nominal level and electrical requirements of every connected analog component.

5. How is AVBridge powered?

AVBridge uses Power over Ethernet. Yealink lists power consumption at approximately 13 W under full load and 8 W without load. PoE simplifies installation because a separate local power supply is not required at the AVBridge location, but the switch must have sufficient power budget for the complete room. In a system with several network microphones, speakers and other PoE endpoints, calculate aggregate consumption and leave sensible capacity margin. For critical rooms, connect the AV network switch to the site’s protected power strategy where appropriate.

6. What cabling should be installed?

Yealink specifies Cat5e or higher network cabling and recommends shielded cable. Cable selection should also follow the building’s structured-cabling standards, distance limits and installation environment. Do not forget service loops, bend radius, labeling and accessible termination. Because AVBridge may be installed behind a display, in furniture or near other AV equipment, installers should reserve enough clearance for the RJ45, USB and Phoenix connections. A clean cable plan improves both initial commissioning and future troubleshooting.

7. Does AVBridge require special software?

AVBridge is compatible with Yealink Room Designer, which supports the intended room-design and deployment workflow. Firmware versions across the Yealink Pro AV ecosystem should be coordinated. Yealink release guidance has noted that newer Room Designer software may discover and upgrade older devices while configuration can still require matching supported versions. For this reason, enterprise administrators should document a tested firmware baseline and avoid ad-hoc upgrades immediately before an important meeting or event. FourTeck can help include firmware planning in a staged deployment scope.

8. Is AVBridge suitable for BYOM rooms?

It can be used in BYOM-oriented designs because Yealink positions its A/V extension capability for flexible device placement and Bring Your Own Meeting applications. The exact user workflow depends on the conferencing host, camera, room peripherals and how the integrator routes USB and audio. A good BYOM room should make the user connection simple while hiding infrastructure complexity. Before procurement, document which laptop platforms and conferencing applications must be supported and test the final reference design rather than assuming every possible host behaves identically.

9. What warranty and replacement support applies in Uganda?

Warranty duration and replacement procedures should be taken from the commercial quotation and applicable supply terms for the specific order. FourTeck can provide the relevant warranty baseline during quotation rather than presenting an unverified generic duration. For multi-room projects, buyers should retain serial-number records, purchase documents, room assignments and configuration notes. If a hardware issue occurs, these records simplify diagnosis and warranty processing. Organizations with critical boardrooms may also consider holding an approved spare to reduce service interruption.

10. What information should be sent for a quotation?

Send the required AVBridge quantity, delivery location, room count, room dimensions, microphone preference or coverage requirement, speaker design, camera model, conferencing platform, network switch information and any need for staging, installation or configuration support. If the project is a tender, include the required compliance documents and delivery deadline. For phased projects, identify the expected rollout schedule so sourcing and lifecycle considerations can be discussed. A complete project brief produces a more useful quotation than requesting only a unit price without the surrounding room requirements.

Request a Yealink AVBridge Procurement Quote

For a new meeting room, an upgrade from basic integrated audio, or a multi-site Yealink Pro AV rollout, FourTeck can help validate the AVBridge bill of materials before purchase. Share the room dimensions, required microphone coverage, speaker plan, camera and host platform, network-switch details, quantity and Uganda delivery location. The commercial response can then confirm current availability, project pricing, applicable warranty terms, lead time and any requested staging or technical services. This approach reduces compatibility surprises and gives procurement teams a clearer basis for approval.
