Cisco Meraki CW9172H Wi-Fi 7 Wall-Plate Access Point for Uganda

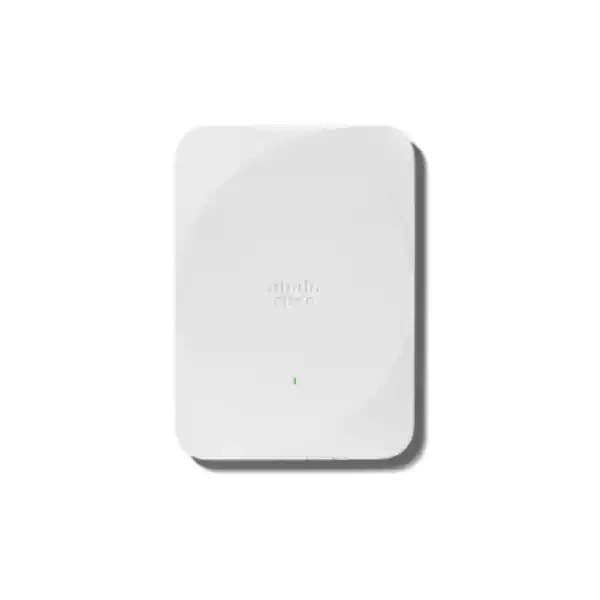

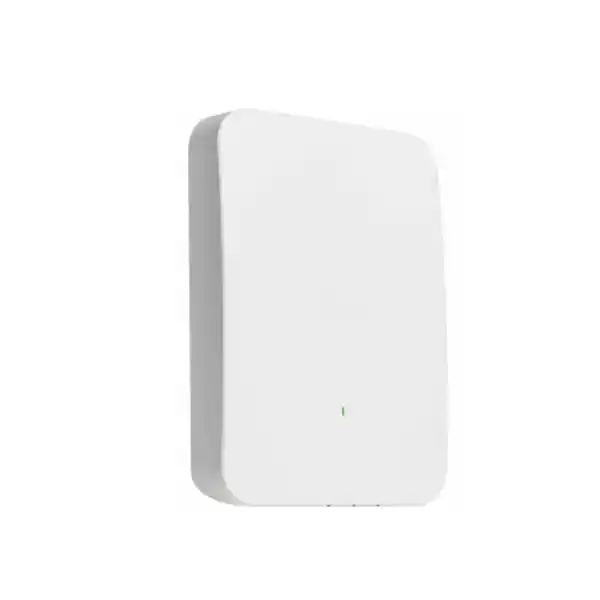

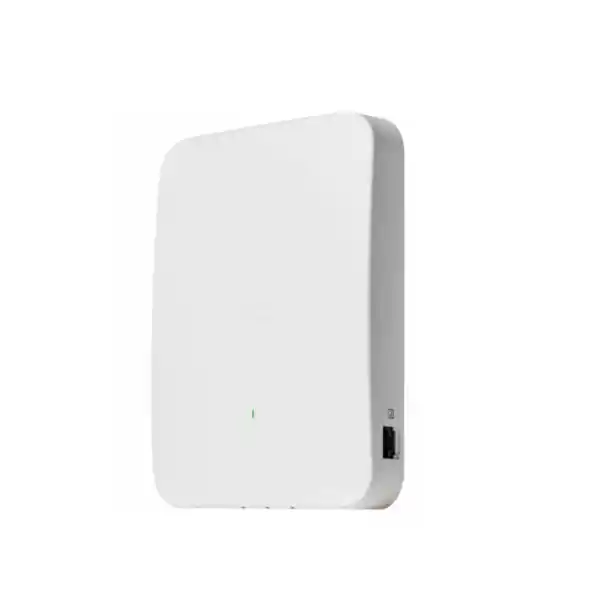

The Cisco Wireless CW9172H is a tri-band, 2×2:2 Wi-Fi 7 wall-plate access point designed to extend dependable wired and wireless networking into individual rooms and compact business spaces. It is particularly useful where an organization wants to serve mobile devices while also providing Ethernet connectivity for fixed endpoints such as phones, televisions, workstations or room equipment. Its integrated 2.4 GHz, 5 GHz and 6 GHz client radios operate alongside a dedicated wireless security and RF scanning radio and a Bluetooth Low Energy radio. Availability of individual bands and features depends on regulatory approval, client capabilities, firmware and configuration.

Request a CW9172H Quote

Procurement Snapshot

Why the CW9172H Fits Room-Based Networks

Conventional corridor access points can leave rooms with inconsistent signal levels because walls, furniture and building materials attenuate radio energy. A room-oriented access point brings the wireless service closer to users and provides physical network ports at the same location. This can simplify the design of guest accommodation, student housing and clinic examination areas. Site surveys remain essential: radio coverage, interference, building materials and client mix determine the correct number and placement of access points. A 9 Gbps maximum aggregate wireless frame-rate specification describes combined theoretical radio capability, not guaranteed application throughput or the speed of the 2.5GbE wired uplink.

Enterprise Benefits

1. Wireless capacity: Wi-Fi 7 features, including multi-link operation where supported, help compatible devices use radio resources efficiently.
2. Wired connectivity: Three gigabit LAN ports can reduce the need for separate small room switches.
3. Security visibility: A dedicated scanning radio supports Air Marshal wireless intrusion detection and RF analytics under compatible management.
4. Guest separation: Appropriate VLANs, authentication and guest isolation policies can segment visitors from internal resources.
5. Operational management: Centralized monitoring can reduce repeated site visits across distributed premises.
6. Lifecycle planning: License, support, power and regulatory requirements can be captured in one procurement bill of materials.

Verified Technical Specifications

Planning Power and Switching

Verify the power sourcing equipment before installation. Although the access point supports multiple PoE standards, the feature set and availability of downstream PoE output depend on delivered power and the negotiated budget. Do not assume that an existing 802.3af switch can operate every feature or power a downstream phone. Where an appropriate multigigabit PoE switch is unavailable, confirm a supported injector and its regional power cord. The access switch should support the intended VLAN, authentication and uplink configuration. For deployments with many rooms, calculate aggregate switch power and uplink oversubscription rather than evaluating one room in isolation.

Configuration and Sizing Worksheet

Start with a room inventory showing occupancy, expected simultaneous devices, fixed Ethernet endpoints and application priorities. Mark locations where wall-mounted units can be secured and cabled. Confirm whether 6 GHz operation is authorized for the exact supplied regulatory domain in Uganda. Select the Cisco management architecture before ordering subscriptions. Document wireless SSIDs, guest access, VLAN assignments, 802.1X or other authentication, roaming expectations and monitoring responsibilities. Test one representative floor or building zone before ordering a large batch, especially where thick masonry, reinforced concrete or metal partitions are present. Obtain a quotation identifying access point quantity, any mounting parts, PoE injectors, licenses, delivery address and implementation support.

Typical Deployment Scenarios

Hotels and Serviced Accommodation

Use room-based coverage to support guest mobile devices and Ethernet-connected entertainment or communication equipment. Keep hospitality guest traffic isolated from management, payment and building systems. Confirm that wall-box geometry, furniture placement and cable entry match the installation plan.

Universities and Student Residences

Provide per-room wireless access with wired options for student workstations or managed devices. Coordinate authentication and capacity policies with the campus network team, and test roaming in corridors and common spaces.

Clinics and Healthcare Sites

Separate staff, patient and clinical-device networks with suitable controls. Validate any relevant medical-site electrical, radio and security policies; the presence of a compliance listing does not replace local deployment approval.

Branch Offices, Banking and Government

Support centrally managed branch connectivity while maintaining local segmentation and audit requirements. Sensitive organizations should review the selected management mode, cloud connectivity, logging, access permissions and procurement approvals before deployment.

Technical Considerations Before Purchase

Wi-Fi 7 and Multigigabit Architecture

The CW9172H uses three client-serving radios and supports Wi-Fi 7 capabilities such as wider channels on supported bands, OFDMA and multi-link operation. Actual performance depends on client radios, permitted channels, interference, upstream link speed and the wider network. A 2.5GbE uplink is useful where the switch and cabling can negotiate that speed; legacy gigabit infrastructure may limit aggregate wired transport.

Management and Security

Cisco supports different management approaches for this platform. Meraki Dashboard provides remote configuration, monitoring and diagnostics under the appropriate license. Other supported Cisco controller arrangements require a compatible software release and corresponding licensing. Validate the chosen operating persona and migration rules in the final bill of materials. Wireless security features include WPA3 options, enterprise authentication, guest policies and dedicated RF monitoring, with availability dependent on configuration and firmware.

Resilience and Service Continuity

Design resilient upstream switching, power backup and Internet or controller connectivity as needed. A wall-plate AP does not itself provide redundant physical uplinks or dual independent power supplies. Consider spare access points, configuration backups, service escalation contacts and replacement procedures. For critical premises, document how guest access and staff workflows behave during upstream or management outages.

Uganda Procurement and Delivery

FourTeck Uganda can assist with requests from Kampala, Entebbe, Jinja, Mbarara and Gulu, including project-based quantities for hotels, education, healthcare and multi-site offices. Quoted availability, lead time, freight charges and delivery arrangements must be confirmed for each order. Cross-border procurement requirements can also be coordinated through the regional FourTeck network: Uganda, Kenya, Africa, UAE and Kuwait. Regulatory domains, taxation, warranty eligibility and importer documentation may differ by destination.

Related Infrastructure to Include in Your Quote

Consider compatible multigigabit PoE switches, supported PoE injectors, structured cabling, Cisco wireless subscriptions, firewall segmentation, UPS backup and installation services. Browse FourTeck Uganda networking solutions or request a consolidated bill of materials. The Cisco Wireless 9172I may also be worth evaluating for spaces where a conventional indoor AP form factor is preferable to a wall-plate design.

Frequently Asked Questions

Is the CW9172H a Wi-Fi 7 access point?

Yes. It supports IEEE 802.11be across supported bands and is designed for tri-band room-oriented wireless networking. Client compatibility and local channel regulations determine which features can be used.

Does the unit provide wired ports?

Yes. In addition to its multigigabit uplink, the unit has three gigabit LAN ports. One supports PoE output when the installation provides a suitable power budget.

Is a Meraki license required?

A Cisco subscription or Meraki AP license is required. The correct entitlement depends on the selected management mode and commercial package; request a quote that explicitly lists license duration.

Can I use an existing PoE switch?

Possibly. Confirm the switch standard, available per-port power, total chassis power budget and desired AP features. The unit supports 802.3af, 802.3at and 802.3bt input, but power constraints may affect operation.

Will the 6 GHz band work in Uganda?

Do not assume it will. Confirm current Uganda spectrum rules, Cisco regulatory-domain support and the exact hardware SKU before purchasing or enabling 6 GHz radios.

Is 9 Gbps the Internet speed users receive?

No. The quoted figure is the combined maximum radio frame rate, not measured user throughput. Actual experience is constrained by client capabilities, shared airtime, the Ethernet uplink and WAN service.

Can it be managed without Meraki Dashboard?

The Cisco Wireless 9172 family offers supported controller-based management options. Verify the specific software persona, controller release, feature availability and license eligibility for your project.

Does it include a power injector?

Do not assume so. Cisco lists supported injectors separately. Confirm the exact accessories and regional power cord in the quotation.

What warranty applies?

Cisco documentation lists a lifetime hardware warranty with advanced replacement for the indoor AP. Actual replacement service, registration and regional terms must be checked against the supplied SKU and purchase channel.

What should a multi-site buyer provide for quotation?

Share site locations, room counts, expected device density, existing switches, management preference, required subscriptions, installation scope and delivery schedule. These details help avoid missing power accessories and licensing line items.
